TCE Big Brake Kit

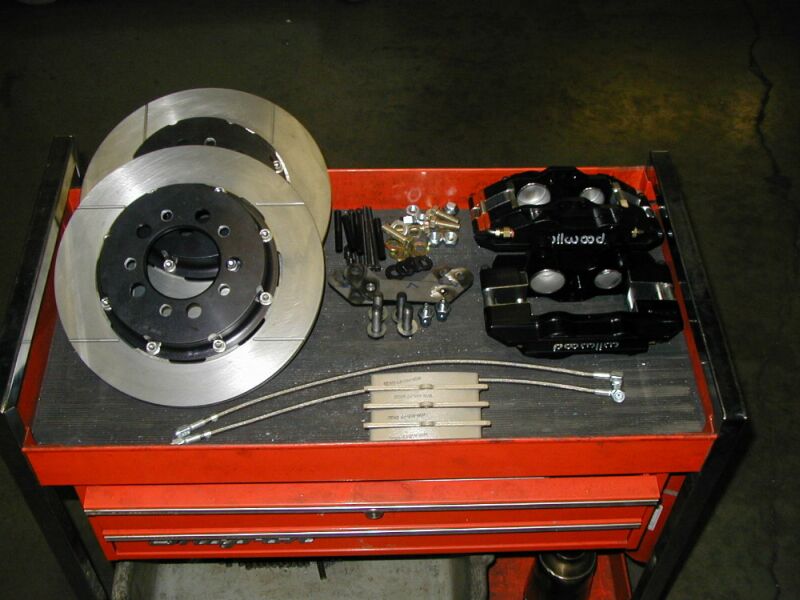

Specs:

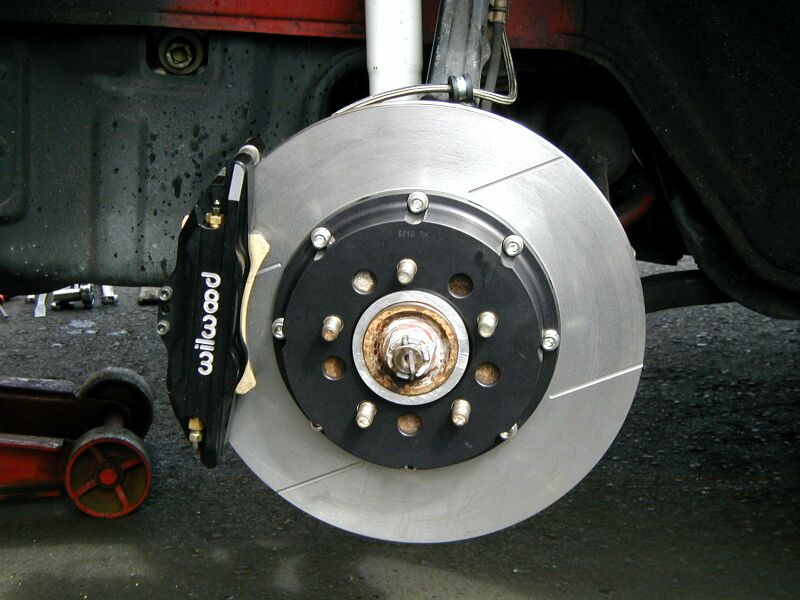

Wilwood 4 piston Forged Superlite Calipers (FSL)

• these calipers are stiffer than the BSL calipers I had previously, and much stiffer than stock


13"x1.25" slotted two-piece directionally vaned rotors

• These rotors barely even heat up on track


SS brake lines

Benefits of the TCE brake kit:

• Bigger Rotors means greater heat dissipation, and thus better fade resistance.


• Since the caliper is set out farther on the rotor, brake torque is higher


• 4 Piston Wilwood calipers are stiffer than stock calipers, thus providing greater clamping force.


• FSL caliper Smaller piston bore retains optimal brake bias so as not

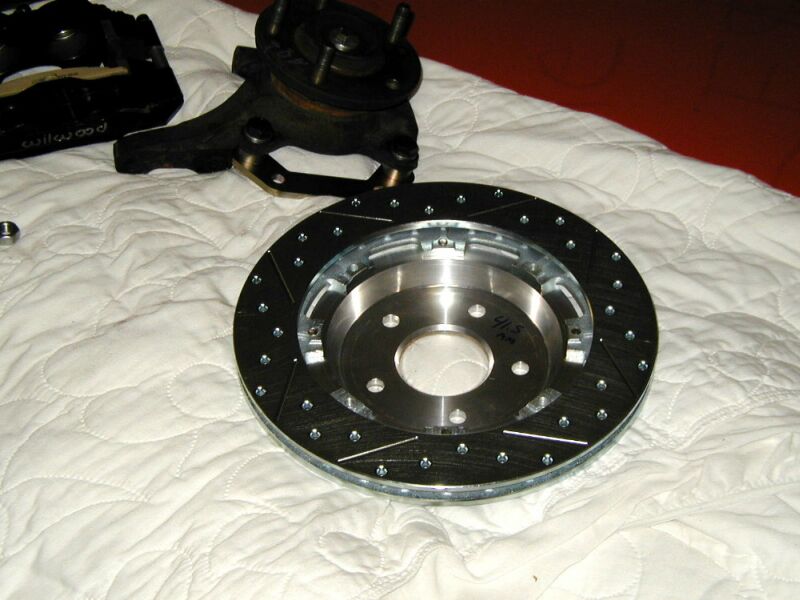

Old uninstalled hardware:

Wilwood 4 Piston Billet Superlite calipers (Each weigh 8 lbs less than stock... but are too flexy for a dsm)

13"x0.81" slotted two piece directionally vaned rotors (weighs only 2 pounds more than stock)

This page was last updated on: January 17, 2006
